MPO Products | MTP Products | Exporter | Supplier | Delhi NCR

MPO Adapter

Applications

CATV
Active device/Transceiver
Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Gigabit Ethernet
Video

Specifications

Insertion Loss: <0.20dB
Durability: <0.20 dB typical change, 1000 matings
Operating Temperature: -40 to + 85°C

MPO Patch-cord

Applications

CATV , and Multimedia
Telecommunication networks
Active device interface
Telecommunication networks
Gigabit Ethernet
Data processing networks
Interconnection for O/E modules
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

Features

Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-1435-CORE compliant

Availability

Various fiber numbers available
Pigtail available

Specifications

Various fiber numbers available
Pigtail available

Capacity (Core)	Size Widthheightdepth	The foundation into the thread hole ( mm)
Insertion Loss	Typical <=0.5dB, Maximum<=0.75dB	310x170x200
Insertion Loss	=60dB (APC)	510x230x200
Operating Temperature	73-20 to + 70°C	510x430x200
Durability	=0.2 dB typical change, 1000 matings
Interchangeability	=0.2dB
Tensile strength	>70N
Repeatability	>70N

MPO Panel

MPO panels are designed to enable a fiber net work to be installed and commissioned in the short possible time. All the components are pre-assembled and easy to be installed to the shelf. It is a perfect solution for optical fiber installations and management.

Features:

Easy for installation and operation.
19’’ standard structure.
Sliding tray design.
Available for the installation of FC/SC/ST/LC adapters.

Type	Dimension (mm)	Max Capability (Cores)	Remark
KPZ-MPO-C	4303001U	72	Cassettes can be customized
KPZ-MPO-P	4303001U	48	Available for FC/SC/ST/LC adapter

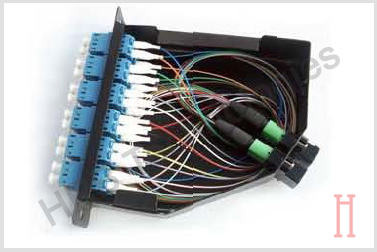

MPO Cassette

Features:

Design for MPO SYSTEM ,for quickly network deploy and quick-fix solution
With cable assemblies pre-termination in factory , not need to splice ,cleave and polish when installing
Cassettes can be easily mounted on the patch panel
LC,SC & MTRJ cassettes available in singlemode and multimode specification

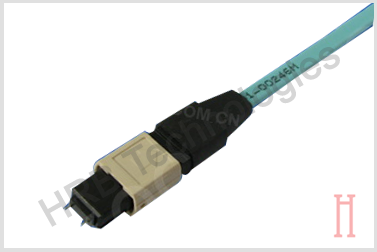

MPO Connector

Applications

CATV, and Multimedia
Gigabit Ethernet
Industrial and medical
Active device interface
Premise installations
Interconnection for O/E modules
Data processing networks
Telecommunication networks
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

Features

IEC 61754-7 Compliant
Compact design, up to 24 fiber ribbon
Polishing does not require diamond film
Precision molded MT ferrule
Telcordia GR-1435-CORE compliant
Low insertion loss and back reflection loss
High precision guide pins for exact alignment

Availability

MPO with bare fiber ribbon
MPO male connector, multimode
MPO female connector, singlemode

Specifications

	Single mode (APC)	Multimode(PC)
Insertion Loss	=0.7dB	=0.5dB
Return Loss	=0.5dB	=30dB
Durability	<0.3dB typical change, 200 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Ferrule Hole Sizes	125.0+1/-0µm, Concentricity: =0.1µm	127µm, Concentricity: =3µm

Ordering Options

Code	Hook Color	Boot Type	Ferrule Holes	FerruleType
Male	Beige	Bare fiber short	4-fiber	SM standard flat (125.5+1/-0um)
Female	Black	Ruggedized ribbon cable	8-fiber	SM standard for angle (125.5+1/-0um)
	Green	Bare fiber long	12-fiber	SM low loss, angled (125.5+0.5/-0um)
	Yellow	90 degree	16-fiber	MM flat (127+1/-1um)
			24-fiber
