SC
Patch-cord |
 |
 |
 |
Applications
- CATV
- Telecommunication networks
- Active device termination
- Metro
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installations
- Wide Area Networks (WANs)
Features
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
|
Single mode |
Multimode |
| Insertion Loss |
>=50 dB (PC)
>=60 dB (APC) |
=0.25dB |
| Return Loss |
=>50 dB |
|
| Repeatability |
<=0.1 |
|
| Durability |
=0.2 dB typical change, 1000 matings |
|
| Interchangeability |
<=0.2dB |
|
| Tensile strength |
>70N |
|
| Operating Temperature |
-20 to + 70°C |
-20 to + 70°C |
|
 |
|
FC
Patch-cord |
|
Applications
- CATV
- CATV
- Active device termination
- Metro
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installations
- Wide Area Networks (WANs)
Features
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
Availability
- Simplex/Duplex patch-cord available
- Fan-out available
- Pigtail available
- Various boot (cable) sizes available
Specifications
|
Single mode |
Multimode |
| Insertion Loss |
Typical <=0.2dB, Maximum<=0.3dB |
=0.25dB |
| Return Loss |
>=50 dB (PC)
>=60 dB (APC |
|
| Repeatability |
<=0.1 |
|
| Durability |
=0.2 dB typical change,
1000 matings |
| Interchangeability |
=0.2dB |
|
| Tensile strength |
>70N |
|
| Operating Temperature |
-20 to + 70°C |
-20 to + 70°C |
|
 |
|
ST
Patch-cord |
|
|
LC
Patch-cord |
|
Applications
- Gigabit Ethernet
- Telecommunication networks
- Active device termination
- Video
- Industrial
- Multimedia
- Military
- Premise installations
Features
- Simplex/Duplex patch-cord available
- LC/PC & LC/APC patch-cord available
- Pigtail available
- Various boot (cable) sizes available
Availability
- The connector can be supplied as a pre-assembled one-piece
connector or as connector kits.
- Clips are available for duplex connectors
- Housing kits without ferrule are available.
Features
- High temperature stability
- Good exchangeability
- Good Durability
- Low insertion loss and back reflection loss
- Standard: Telcordia GR-326-CORE
Specifications
|
Single mode |
Multimode |
| Insertion Loss |
Typical <=0.2dB, Maximum<=0.3dB |
=0.25dB |
| Return Loss |
>=50 dB (PC)
=60 dB (APC) |
|
| Repeatability |
<=0.1 |
|
| Durability |
=0.2 dB typical change,
1000 matings |
| Interchangeability |
=0.2dB |
|
| Tensile strength |
>70N |
|
| Operating Temperature |
-20 to + 70°C |
-20 to + 70°C |
|
 |
|

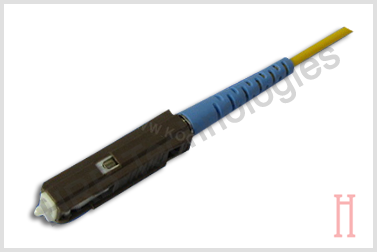

MU
Patch-cord |
|
|
MTRJ
Patch-cord |
|
Applications
- CATV, and Multimedia
- Telecommunication networks
- Active device interface
- Gigabit Ethernet
- Interconnection for O/E modules
- Data processing networks
- Optical switch interframe connection
- Premise installations
- Asynchronous Transmission Mode (ATM)
- Industrial and medical
Features
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High precision guide pins for exact alignment
- Standard: TIA/EIA 568-A compliant
Specifications
|
Single mode |
Multimode |
| Insertion Loss |
=0.20dB |
<=0.25dB |
| Return Loss |
=45 dB |
|
| Repeatability |
=0.1 |
|
| Durability |
=0.2 dB typical change, 1000 matings |
|
| Interchangeability |
=0.2dB |
|
| Tensile strength |
>70N |
|
| Operating Temperature |
-20 to + 70°C |
-20 to + 70°C |
|
 |
|
|
