SC
Adapter |
 |
 |
 |
Applications
- CATV
- Metro
- Telecommunication networks
- Local Area Networks (LANs)
- Test equipment
- Data processing networks
Features
- Low insertion loss and back reflection loss
- High precision alignment
- Compact design
- With/without flange
- Choice of housing material and sleeve material
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
- Plastic housing without recycled material
Availability
| Metal housing |
Plastic housing |
Zirconia sleeve |
| Ceramic sleeve |
Simplex |
Duplex |
| Quadplex |
SC/PC |
SC/APC |
Specification
| Insertion Loss |
<0.20dB |
| Durability |
<0.20 dB typical change, 1000 matings |
| Operating Temperature |
-40 to + 85°C |
Ordering Option
| Housing Color |
Housing Material |
Sleeve Material |
Channel |
Application |
Flange |
| Beige |
Plastic |
Zirconia |
Simplex |
SC/PC |
With |
| Blue |
Metal |
PB |
Duplex Quadplex |
SC/APC |
Without |
|
 |
|
ST
Adapter |
|
Applications
- Premises installation
- Metro
- Telecommunication networks
- Local Area Networks (LANs)
- Test equipment
- Data processing networks
Feature
- Compact design
- High precision alignment
- Nickel plated brass body
- Low insertion loss and back reflection loss
- Choice of housing material and sleeve material
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
- Plastic housing without recycled material
- Ceramic sleeve and Ziconia sleeve
Availability
| Zirconia sleeve |
Brass body |
| Zinc di-cast body |
Simplex |
Specification
| Insertion Loss |
<0.20dB |
| Durability |
<0.20 dB typical change, 1000 matings |
| Operating Temperature |
-40 to + 85°C |
Ordering Option
| Housing Material |
Sleeve Material |
Channel |
| Nickel plated brass |
Zirconia |
Simplex |
| Plastic |
PB |
Simplex |
|
 |
|
SMA
Adapter |
|
|

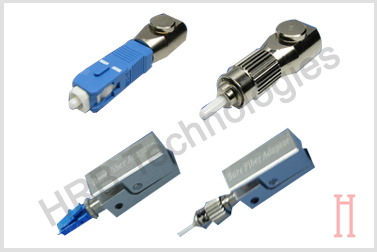

Bare
Fiber Adapter |
|
Applications
- PC type Various receptacle type
- High stability
- Easy to operate
- Repeated use
Features
- Ferrule ID:Ø0.1255/Ø0.1260
- Insertion Loss:< =1dB
- Repeatability:< =0.2dB
- Life times: >=1000
|
 |
|
LC
SC ONE PIECE ADAPTER |
|
|
|
Applications
- CATV
- Active device/Transceiver
- Telecommunication networks
- Metro
- Multimedia
- Data processing networks
- Test equipment
- Premise installations
- Gigabit Ethernet
- Video
Features
- One piece solid body, no welding point
- Low insertion loss and back reflection loss
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
- High precision alignment
- Compact design
- Plastic housing without recycled material
- Ceramic sleeve and Zirconia sleeve
Availability
| With zirconia sleeve |
Simplex |
| Duplex |
LC/APC |
Features
- Insertion Loss: <0.20dB
- Durability: <0.20 dB typical change, 1000 matings
- Operating Temperature: -40 to + 85°C
|
|
|
HYBRID
Adapter |
|
